COATFLEX Structural
COATFLEX Structural combines mechanical strength and UV stability to ensure long-term resistance and integrity in high-load and outdoor conditions.
| High resistance |
| Fireproof |
| UV resistant |
| Flat and low unroll shrinkage |
| Easy welding |
Format
- 8oz/yd² to 44oz/yd²
- Width: 61 in
- Length: 150 ft to 300ft
- Other weights, widths and lengths available upon request.
Colors
- RAL : 1003, 3002, 5002, 6026, 7035, 7038, 9005, 9010 and 9016
- Other colors available upon request
RAL 3002 |
RAL 6026 |
RAL 5002 |
RAL 1003 |
RAL 7038 |
RAL 7035 |
RAL 9016 |
RAL 9010 |
RAL 9005 |
Description
COATFLEX Industrial represents the foundation of our coated fabric range—strong, flexible, and made to perform in high-demand environments. Its toughness, weldability, and dimensional stability ensure dependable protection for truck curtains, dock shelters, tarpaulins, and industrial partitions.
Advantages
- Strong polyester base with high tear and abrasion resistance
- Stable weld seams; consistent gauge and dimensional stability
- Durable PVC coating for long service life in frequent use
- Reliable flexibility for handling, cutting, and fabrication
- Good UV and weather resistance for indoor–outdoor operation
- Color and surface uniformity across production batches
- Balanced performance-to-cost for high-volume projects
Applications
| Properties | Test Method | Unit | T670 | T900 |
| Emboss | - | - | Acrylic | Acrylic |
| Base Fabric | DIN 60001 | - | PES | PES |
| Yarn Count | DIN 1049-2 | nr/inch | 23*23 | 30*30 |
| Titer of Yarn | DIN 2060 | Denier | 1000D | 1000D |
| Weight | DIN EN ISO 2286-2 | oz/yd² | 19.77 | 26.55 |
| Weight of Base Fabric | DIN 12127 | oz/yd² | 6.20 | 8.11 |
| Thickness | - | in | 0.0221 | 0.0295 |
| Width | - | in | 98.425 | 118.11 |
| Tensile Strength (Warp) | EN ISO 1421 | lbf/in | 342.9 | 457.2 |
| Tensile Strength (Weft) | EN ISO 1421 | lbf/in | 320.0 | 457.2 |
| Tensile Strength (Warp) | DIN 53363 | lbf | 71.94 | 123.64 |
| Tensile Strength (Weft) | DIN 53363 | lbf | 67.44 | 112.40 |
| Adhesion Strength (Face) | EN ISO 2411 | lbf/in | 11.43 | 11.43 |
| Adhesion Strength (Back) | EN ISO 2411 | lbf/in | 11.43 | 11.43 |
| Flame Retardancy | NF P92-507, DIN 4102 | - | M2(1), B1(1) | M2(1), B1(1) |
| Service Life | - | years | 3-5 years | 7-8 years |
| Threshold Temperature | DIN EN 1876-1 | °F | -7.6°F to 316.4°F | -7.6°F to 316.4°F |
| Light Transmission | ISO 13468-1 | % | 9 | 2 |
Frequently asked questions about COATFLEX Structural
What is COATFLEX Structural used for?

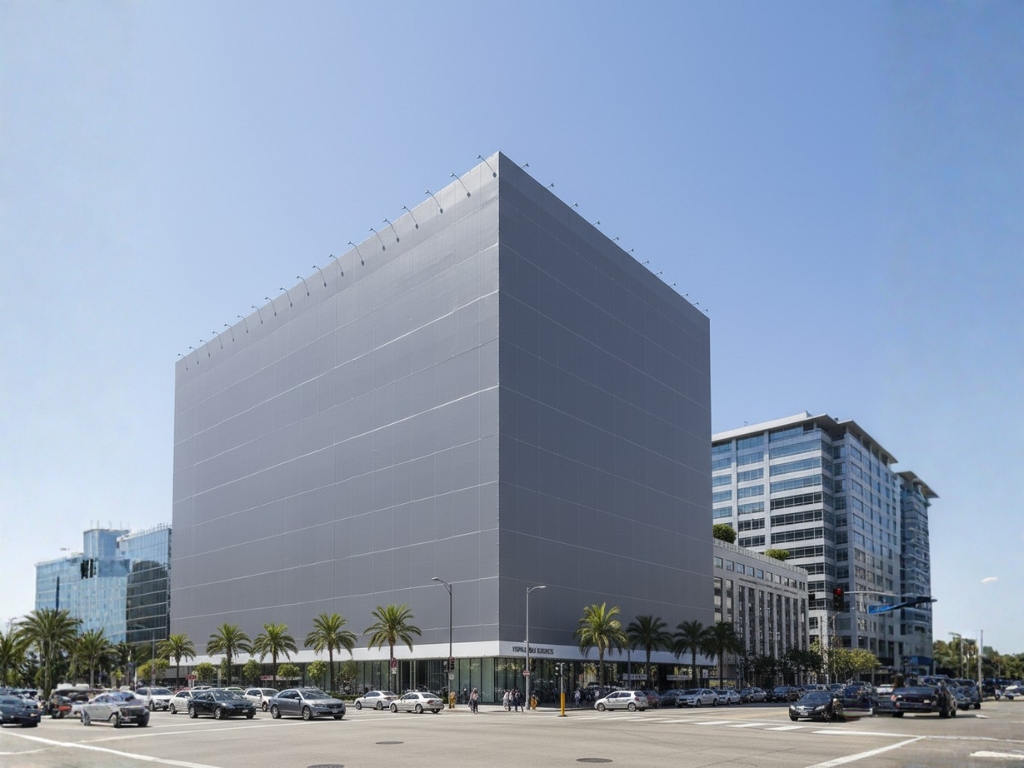

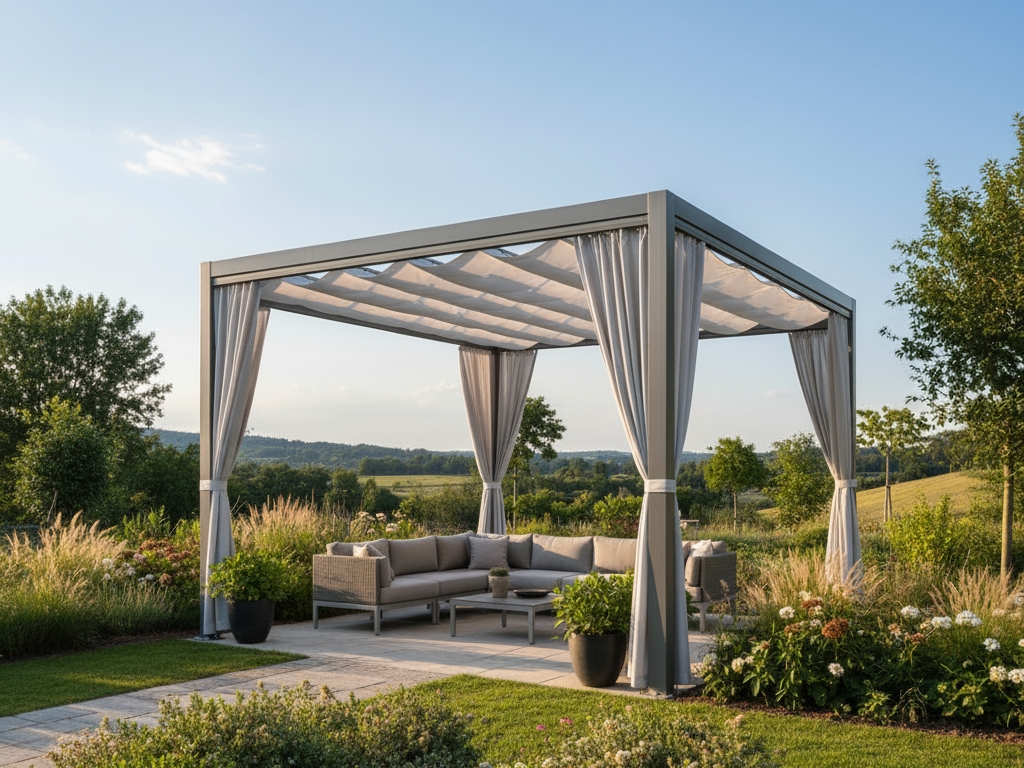

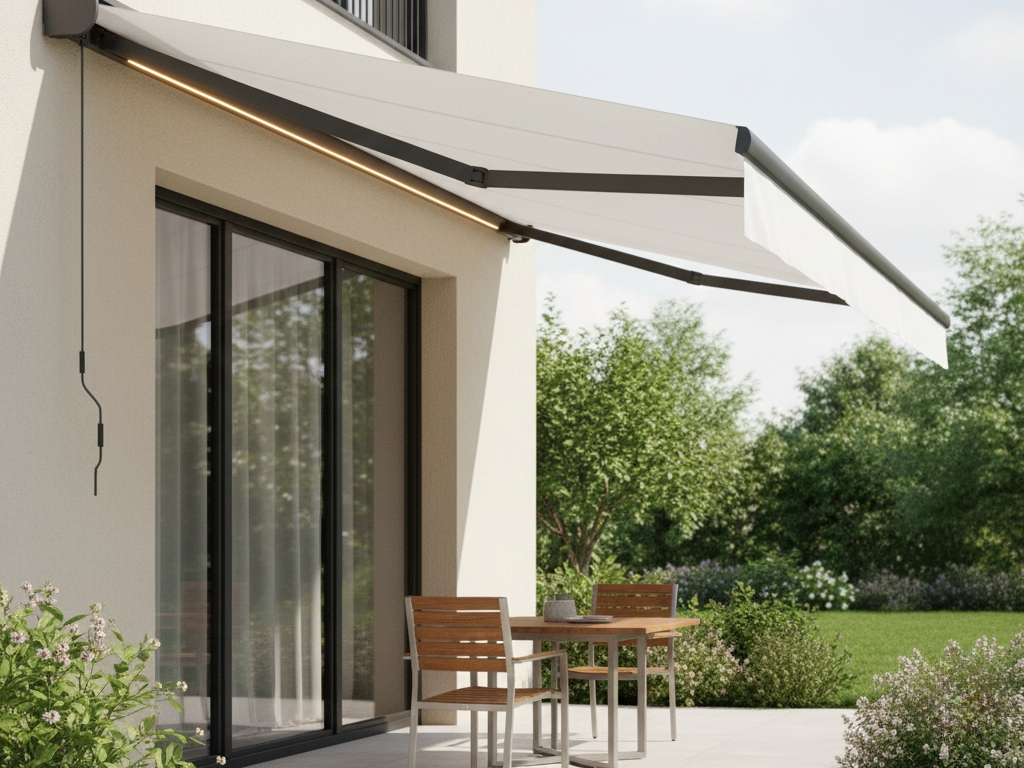

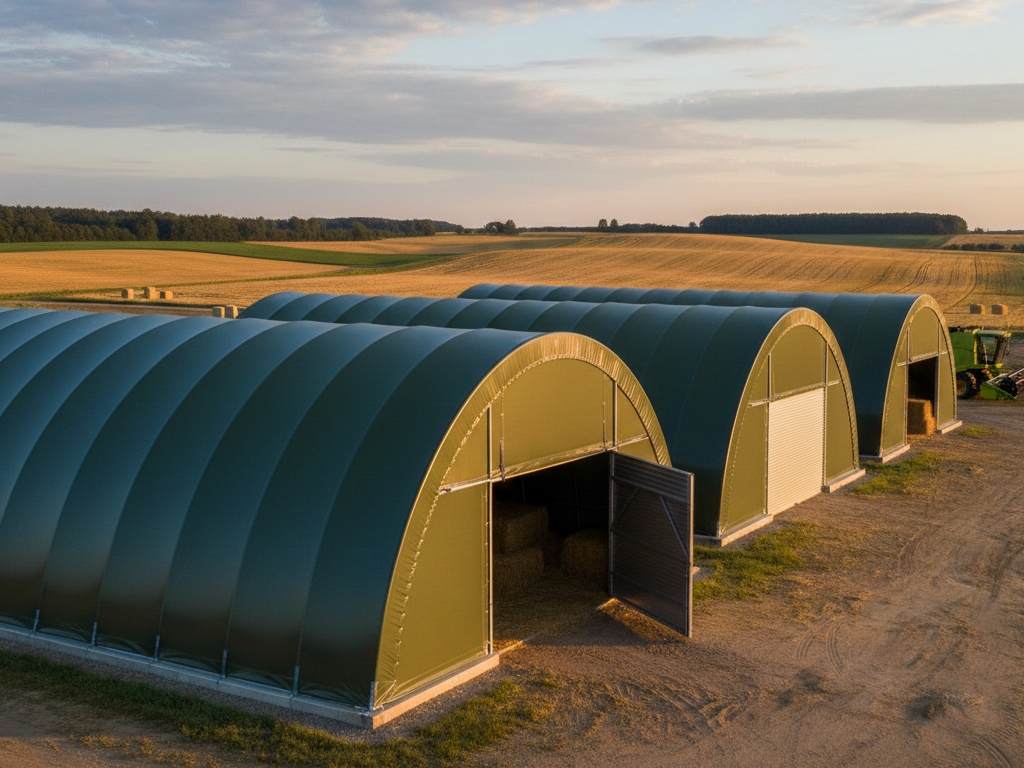

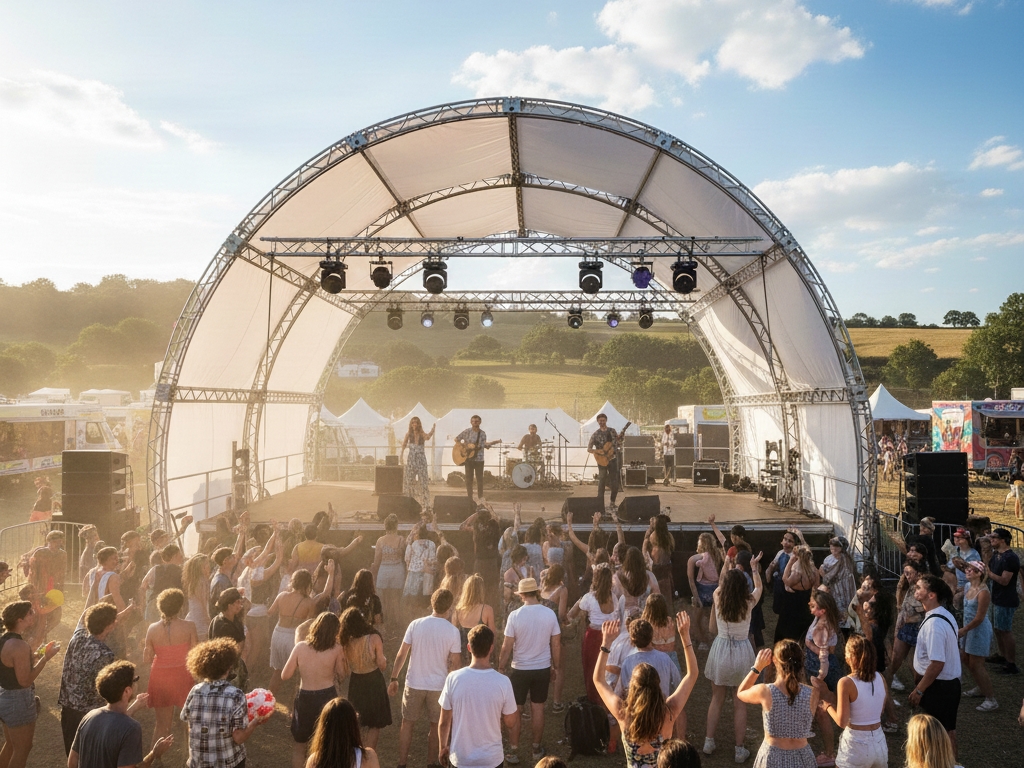

COATFLEX Structural is used for high-load membranes, outdoor structures, tensile covers, shelters, awnings, facade wraps, stage covers, agricultural tunnels, and other applications that require strength and dimensional stability.
When should I choose COATFLEX Structural?
Choose COATFLEX Structural when the coated fabric must resist mechanical load, outdoor exposure, wind stress, tension, UV, and long-term environmental conditions.
How is COATFLEX Structural different from COATFLEX Industrial?
COATFLEX Industrial is built for general heavy-duty use, while COATFLEX Structural is selected when the fabric must perform as part of a load-bearing or tensioned structure.
What makes COATFLEX Structural suitable for outdoor structures?
It combines mechanical strength, UV resistance, fire-retardant options, dimensional stability, low shrinkage, and weldability for demanding exterior and tensioned applications.
Can COATFLEX Structural be used for tensile roofs and shelters?

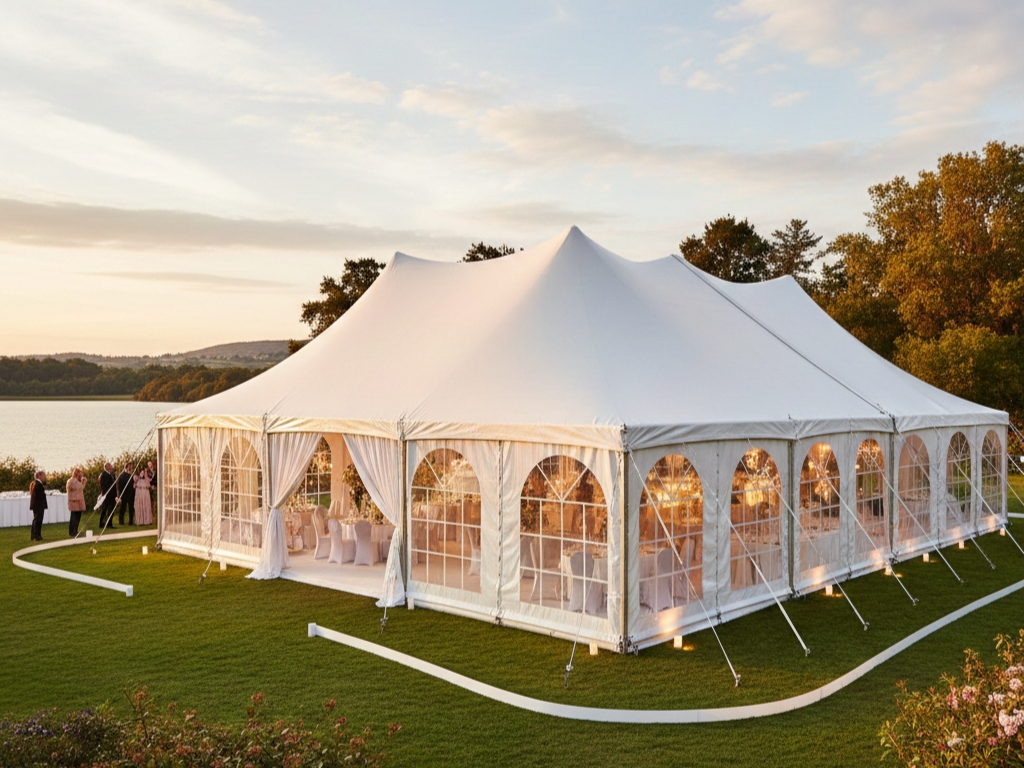

Yes. It is suited to tensile roofs, large-span shelters, canopies, event covers, agricultural structures, and other membrane applications exposed to load and weather.
Why does dimensional stability matter for structural coated fabric?
Dimensional stability helps the membrane hold its designed shape, maintain tension, fit fabricated assemblies, and perform consistently during long-term outdoor service.
Does structural coated fabric require engineering review?
Yes. Load-bearing or tensioned fabric structures should be reviewed for load, wind, anchoring, seam design, and local project requirements.
